Robotic Washer

Where automation meets perfection in cleaning.

Product Description

Ralsonics Robotic Washer is an advanced, fully automated industrial cleaning solution that combines robotic precision with high-pressure washing technology. Designed for industries that demand consistency, flexibility, and high throughput, this system ensures uniform cleaning of complex geometries while reducing labour costs and human error.



Equipped with intelligent programming, multi-axis robotic arms, and high-pressure jet systems, the Robotic Washer provides repeatable, efficient, and contamination-free cleaning for even the most challenging industrial components.

robotic washer

How It Works

  • Components are loaded manually, via conveyors, or robotic material handling systems.

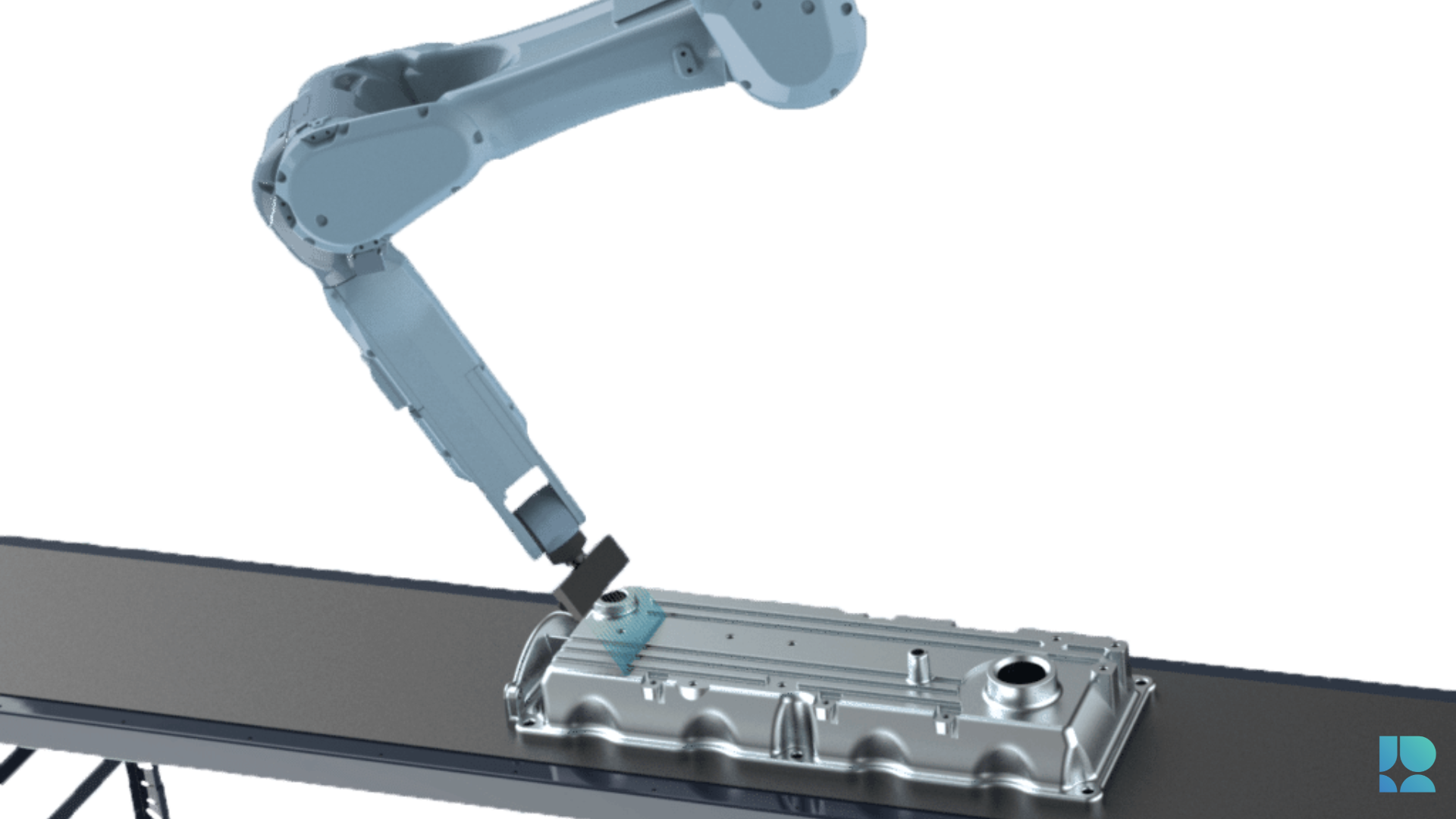

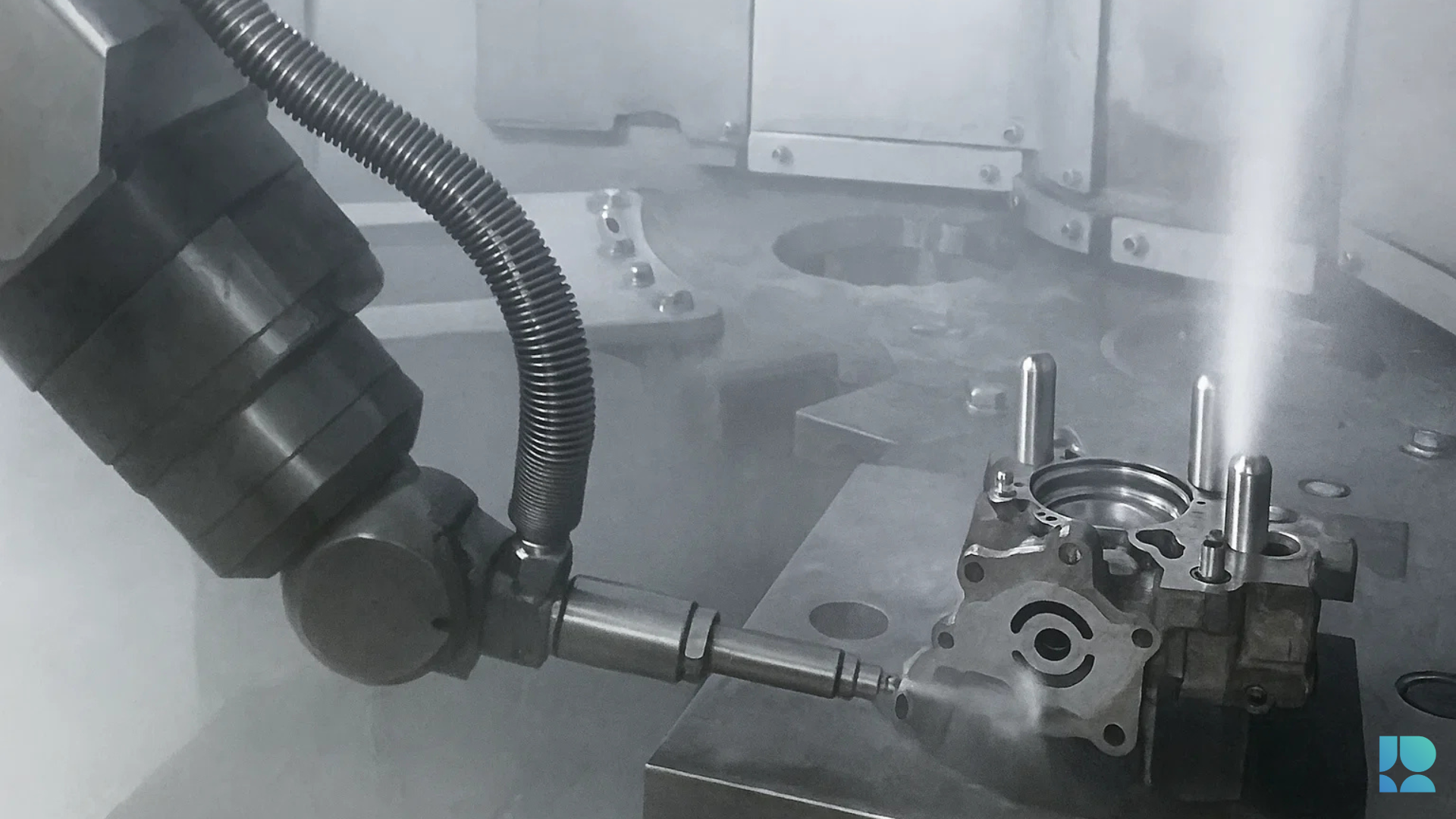

  • A multi-axis robotic arm maneuvers high-pressure nozzles around the part, targeting all surfaces with precision.
  • Pre-programmed cleaning cycles ensure consistent washing, rinsing, and drying for each component.
  • Advanced filtration and recirculation systems minimize water and chemical usage.
  • Clean, dry parts are automatically discharged, ready for further processing or assembly.

Key Features

  • Robotic Arm Integration – Multi-axis robots ensure accurate and flexible cleaning of complex shapes.
  • High-Pressure Jet Technology – Removes oil, grease, dirt, and residues effectively.
  • Programmable Cleaning Cycles – Pre-set recipes for different components and contamination levels.
  • Smart Automation – Integration with conveyors, loading systems, and other production lines.
  • Durable Stainless Steel Construction – Corrosion-resistant SS 304/316 build for long-term performance.
  • Eco-Friendly Design – Water recycling and filtration reduce resource consumption.
  • Customizable Setup – Multiple robots, pressure levels, and nozzle configurations available.
  • Advanced Controls – PLC with HMI interface for easy operation and monitoring.

Advantages

  1. Precision Cleaning – Robotic arms reach areas that manual or static systems cannot.
  2. High Productivity – Continuous and automated operation increases throughput.
  3. Flexibility – Easily adaptable to different component shapes, sizes, and materials.
  4. Reduced Labor Costs – Automation minimizes operator involvement.
  5. Consistency & Reliability – Delivers uniform cleaning quality for every cycle.
  6. Eco-Efficient – Optimized water and detergent usage lowers operating costs.
  7. Integration Ready – Can be connected to conveyorized production lines or robotic material handling.

Technical Specifications (Typical Range – Customizable)

Parameter Specifications

Robotic Arm Type

4-axis / 6-axis industrial robot

Washing Pressure

10 bar – 500 bar

Work Envelope

Configurable as per part size

Nozzle Configuration

Fixed / oscillating / robotic jet nozzles

Material of Construction

SS 304 / SS 316L

Tank Capacity

100 liters – 2000 liters

Heating System

Electric / steam, 30°C – 90°C

Filtration System

Multi-stage filtration with oil skimmer

Drying Options

Hot air, or vacuum drying

Control System

PLC with HMI touchscreen

Power Supply

415V, 50/60 Hz, 3 phase

Optional Features

Conveyor integration, automatic detergent dosing, IoT monitoring

Applications

  • Automotive: Engine blocks, gear housings, crankshafts, transmission parts
  • Aerospace: Turbine blades, hydraulic parts, landing gear assemblies
  • Heavy Machinery: Bearings, shafts, castings, and fabricated parts
  • Electronics & Electricals: Enclosures, connectors, mechanical sub-assemblies
  • General Manufacturing: Tools, dies, and precision components

Why Choose Ralsonics for Robotic Washer?

  • 50+ years of expertise in advanced industrial cleaning solutions
  • Proven success in automotive, aerospace, electronics, and heavy manufacturing industries
  • Custom-engineered systems tailored to your production line and cleaning needs
  • Cutting-edge automation technology for consistent and efficient results

“FAQs”

FAQ Accordion
Q1. What is a robotic washer?

A robotic washer is an automated cleaning system that combines high-pressure washing technology with robotic arms to ensure precise, uniform, and repeatable cleaning of industrial components.

Q2. What are the main advantages of using a robotic washer?

Robotic washers offer several benefits, including: Consistent and precise cleaning for complex geometries High productivity through continuous operation Reduced labor costs due to automation Eco-efficient design with water recycling and detergent management

Q3. Is the robotic washer customizable?

Absolutely. Ralsonics offers custom-engineered robotic washers with options such as different nozzle configurations, conveyor integration, hot air or IR drying, and IoT-enabled monitoring.
